POWER

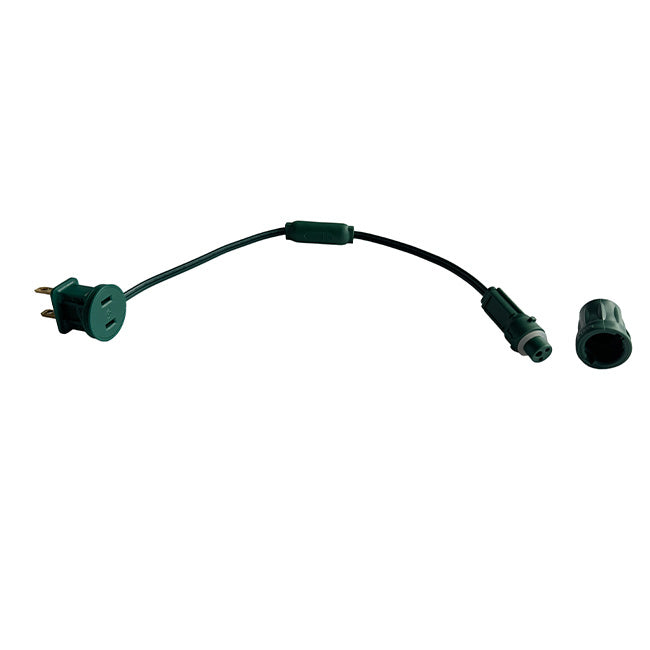

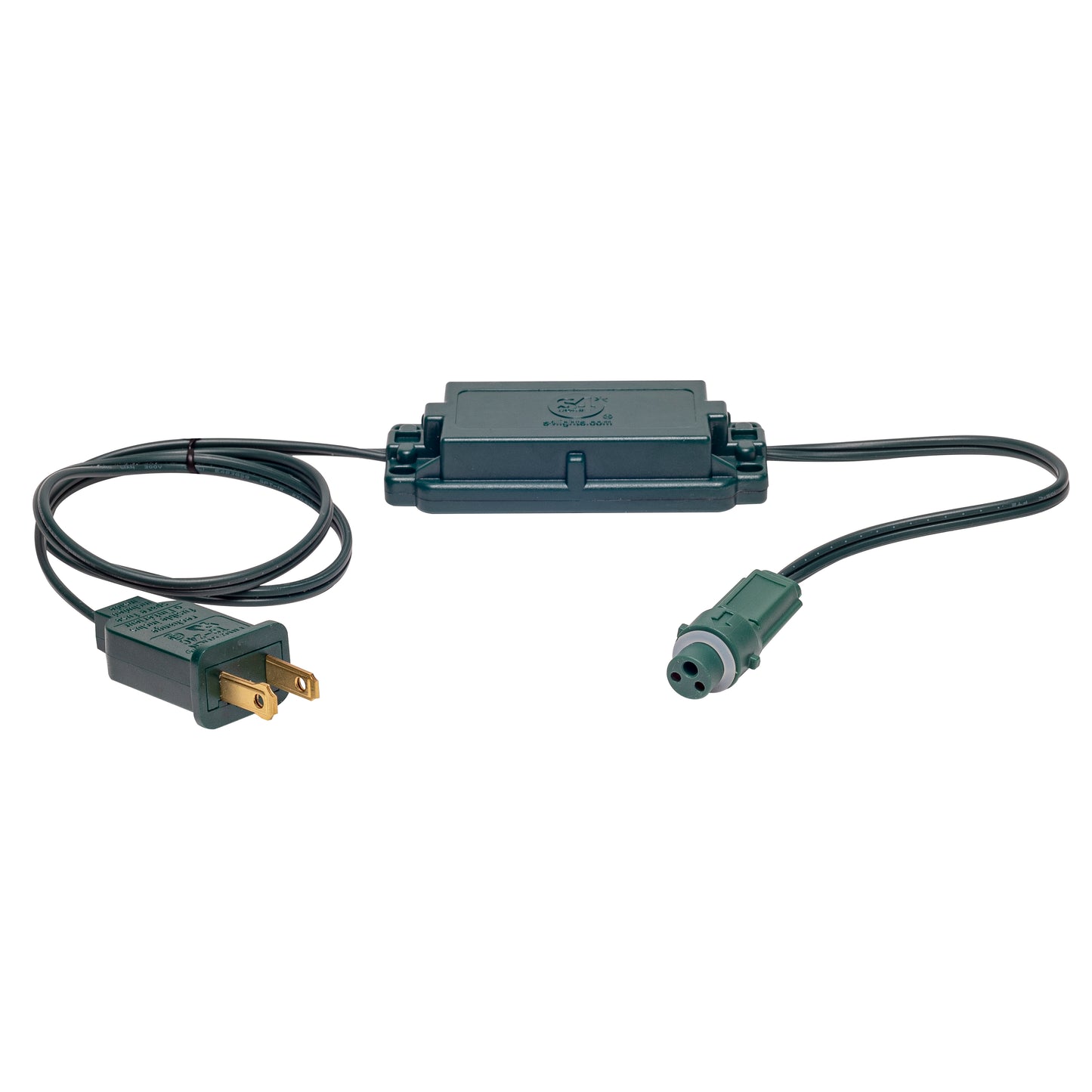

Power Adapter Lead w/ Rectifier

120VDC • Green Wire • Benchmark Coupling

$13.42

SKU: 1102002E

Total Length/Width (ft)
Quantity discounts
Quantity Price
1-11 $13.42
12+ $12.15

Take a step up from traditional Standard Plug light products to Benchmark Coupling Family which uses one Power Adapter Lead to power up to 9000 LEDs depending on the light product you choose.

LED light products will flicker if the electrical wave generated by AC power is not modified or ‘rectified’ before it flows through the LEDs. The single high-powered rectifier built into the housing removes the need for the traditional 2-3 rectifiers built into Standard Plug light strings, reducing the possible points of failure and giving a much cleaner look to the string.

The easy-to-use twist-lock cap on the coupling adapter seals tight to reduce weather intrusion, current leakage and accidental separation. Compatible with all Benchmark Coupling, Benchmark NxG Coupling and Everlastrings 120V Series lighting products.

Required Items

View full details

Features & Benefits

  • Rectifies 120VAC power to simulate 120VDC allowing LEDs to shine flicker-free
  • One high-power rectifier built into the housing eliminates need for rectifiers in the string
  • IP66 Rated
  • cCSAus Listed

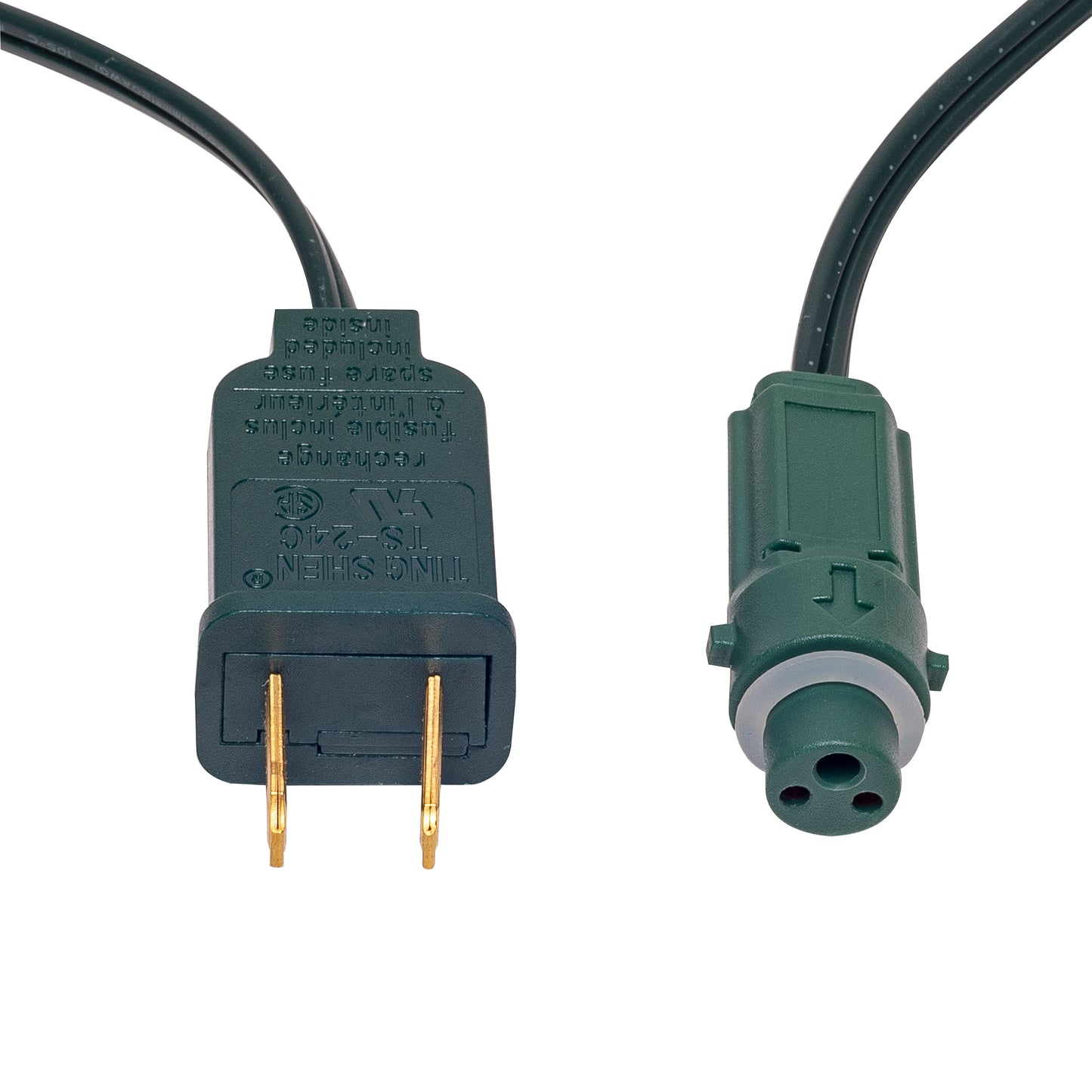

  • Twist-lock coupling connector saves installation time, provides a weather-resistant seal and prevents accidental separation
  • 2-prong Standard Plug Male Connector
  • Benchmark Coupling Female Connector
  • 3-season warranty
  • Required component for all Benchmark Coupling, Benchmark NxG Coupling and Everlastrings 120V Series lighting products

Product Information

Current Rating (amps): 3.6
Input Voltage: 120VAC 60Hz
Output Voltage: 120VDC
Product Depth (in): 2.24
Product Height(in): 1.0
Wire Conductor Material: Copper
Wire Type: XTW
Connector Input (Male): Standard Plug, Polarized, 1-15P
Connector Output  (Female): BK R Coupling
Input Lead Length (in): 24
LED Grade: Pro Grade
More Information: Up to 9000 Lights - Product Dependent
Product Certification: CSAus
Product Color: Green
Product Standard: UL 588
Wire Gauge: 2x20AWG
Product Current (amps): 3.6
Product Diameter/Width (in): 3.7
Product Wattage (watts): 432
Wire Material Color: Green
IP Rating: IP66
Packaging: Polybag w/ Label
Use Case: Indoor/Outdoor
